GP - serija

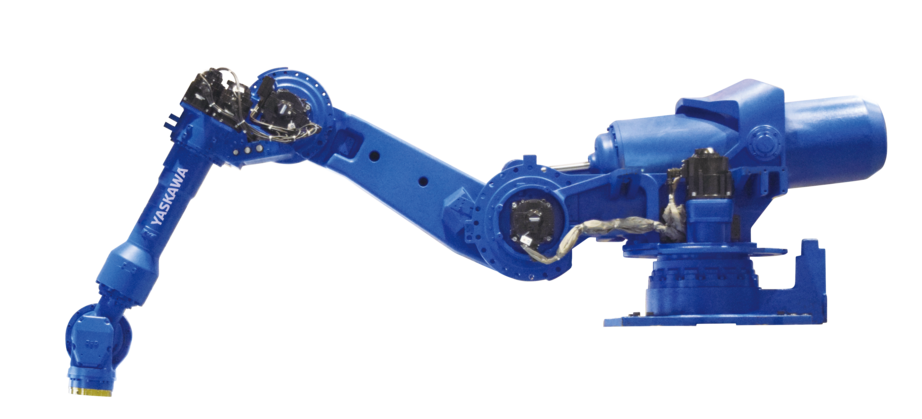

GP200R
Shelf mounted robot with high payload
Pregled
MOTOMAN GP200R je zasnovan za montažo na stroj (shelf type) z nosilnostjo 20 kg.
Tehnične informacije
- Število osi
- 6
- Nosilnost
- 200 kg
- Max polmer dosega
- 3140 mm
- Ponovljivost
- 0.05 mm
- Teža
- 1830 kg
- Priključna moč
- 5 kVA
- Maximum Speed S Axis
- 90 °/s
- Maximum Speed L Axis
- 85 °/s
- Maximum Speed U Axis
- 85 °/s
- Maximum Speed R Axis
- 120 °/s
- Maximum Speed B Axis
- 120 °/s
- Maximum Speed T Axis
- 190 °/s
- Postavitev
- Shelf-Mounted
- Dodatne specifikacije
- x Ne
Namestitve
Ime | |||
Flyer Robot GP-Shelftype-Series_E
Handling & General Applications with the Shelftype GP-series Data sheet | angleščina |
Data sheet | angleščina | |
Flyer Robot GP-Shelftype-Serie_D
Handling & Allgemeine Applikationen mit den Shelftype-Varianten der GP-Serie Data sheet | nemščina |
Data sheet | nemščina | |
GP200R 2D CAD/CAE | | CAD/CAE | ||
GP200R_SP185R 3D CAD/CAE | | CAD/CAE | ||
Brochure GP Series Brochures | angleščina | Brochures | angleščina | |
Broschüre GP-Serie Brochures | nemščina | Brochures | nemščina |
