PL Series

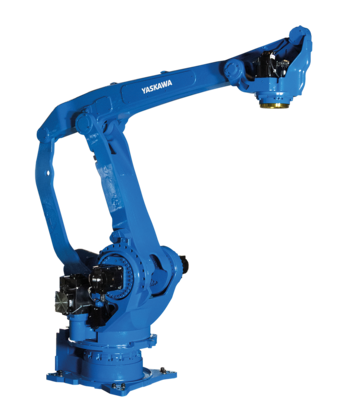

PL190
High Performance Palletizing & Handling
Pregled
With over 1700 cycles per hour, the fast and powerful 4-axis MOTOMAN PL190 robot offers top performance for box, carton and bag palletizing for end-of-line packaging and logistics applications.
The optimized kinematic structure of this robot provides even better stability and higher max. payload capacity of 190 kg compared to the predecessor model.
The superior working range with a maximum reach of 3,159 mm and an achievable stacking height of over 2,600 mm is perfect for all kinds of palletizing tasks.
Tehnične informacije
- Število osi
- 4
- Nosilnost
- 190 kg
- Max polmer dosega
- 3159 mm
- Ponovljivost
- 0.05 mm
- Teža
- 1680 kg
- Priključna moč
- 9.5 kVA
- Maximum Speed S Axis
- 140 °/s
- Maximum Speed L Axis
- 145 °/s
- Maximum Speed U Axis
- 145 °/s
- Maximum Speed T Axis
- 420 °/s
- Postavitev
- Floor
- Dodatne specifikacije
- x Ne
Namestitve
| Ime | |||
|
Flyer Robot PL190
Palletizing & Handling with the PL-series Data sheet | angleščina |
Data sheet | angleščina | |
|
Flyer Robot PL190
Palettieren & Handling mit der PL-Serie Data sheet | nemščina |
Data sheet | nemščina | |
| Flyer Robot PL190 Data sheet | francoščina | Data sheet | francoščina | |
| PL190_2D CAD/CAE | | CAD/CAE | ||
| PL190_3D CAD/CAE | | CAD/CAE |
