TD 03 – Text Display

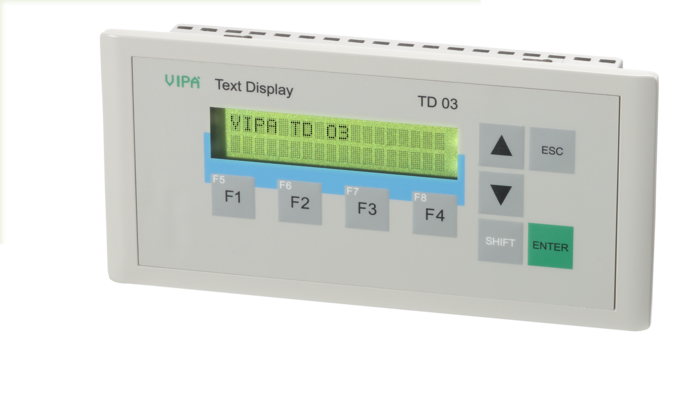

The compact VIPA Text Display TD 03 shows via a backlit LCD display defined message texts. Inputs and outputs, and process parameters can be set through the membrane keys and changed. The configuration of the messages and the parameter block is performed using the TD-Wizard from VIPA. The menu can be selected in English and German. The text display is designed for use in combination with VIPA CPUs 11x, 21x, 31x, 51x and the S7-300/400 CPUs designed by Siemens.
Ordercode: 603-1TD00
- Display: 2 x 20 characters
- Interface: MP²I
- Languages: DE, EN
- Visualization of the connected CPU via MPI
- Project engineering via TD-Wizard of VIPA
Tehnične informacije
- Velikost zaslona vrstice
- 2 x 20
- CPU Ime
- PLC CPU
- CPU Hitrost
- x Ne
- RAM
- x Ne
- Zunanja reža
- x Ne
- Komunikacijski riklop na matični plošči
- x Ne
- Operacijski sistem
- x Ne
