Panel PC

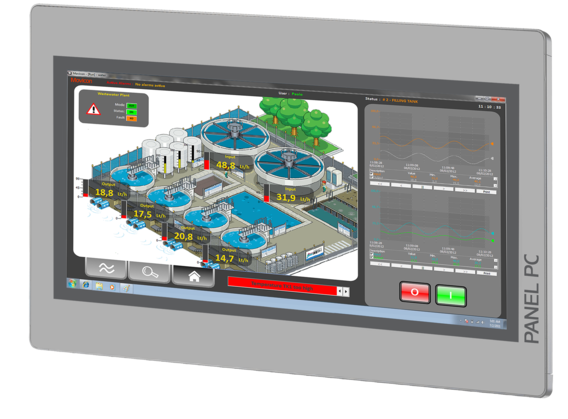

Panel PC PPC015 CE - Movicon Runtime - 67P-RRJ0-EB
Operating & Monitoring
Yaskawa Slovenia Produkti HMI Panel PC Panel PC PPC015 CE - Movicon Runtime - 67P-RRJ0-EB
Pregled
Panel PC PPC015 CE
Ordercode: 67P-RRJ0-EB
- Display: 15.6”
- Processor: Intel Celeron J1900 quad core @2 GHz
- Work memory: 2 GB
- Operating system and user memory: 2 GB
- Memory card plug-in place: CFast
- Interfaces: 2x Ethernet (10/100/1000), 2x USB 2.0, 1x USB 3.0, 2x serial (RS232,RS422/RS485), 1x VGA, Audio out
- Software: Windows Embedded Compact 7
- Visualization system: Movicon 11.6 Runtime - 4096 I/Os
Tehnične informacije
- Velikost zaslona
- 15.6 "
- Velikost zaslona vrstice
- x Ne
- CPU Ime
- Intel Celeron J1900
- CPU Hitrost
- 2000 MHz
- RAM
- 2000 MB
- Uporabniški spomin
- 2 GB
- Zunanja reža
- CFast Card
- Komunikacijski riklop na matični plošči
- Ethernet (10/100/1000), USB 3.0, USB 2.0, RS-232/422/485, Audio Out
- Operacijski sistem
- Windows Embedded Compact 7
Namestitve
Ime | |||
Firmware for HMI Panel PC
67P-RRJ0-EB WEC7 20190423 V1.0.4 Firmware | |
Firmware | ||
HMI
Broschüre Bedienen & Beobachten Brochures | nemščina |
Brochures | nemščina | |
HMI
Brochure Operating & Monitoring Brochures | angleščina |
Brochures | angleščina | |
Panel PC PPC015 EC - PPC 67P-RRJ0
Rev. 23-10 || 15.6", 2GHz || HW: 01 | FW: V1.0.0 BS: Windows® Embedded Compact 7 Technical documentation | angleščina |
Technical documentation | angleščina | |
Panel PC PPC015 EC - PPC 67P-RRJ0
Rev. 23-10 || 15,6", 2GHz || HW: 01 | FW: V1.0.0 BS: Windows® Embedded Compact 7 Technical documentation | nemščina |
Technical documentation | nemščina | |
Panel PC PPC015 CE - 67P-RRJ0-EB
Datasheet for Panel PC PPC015 CE - 67P-RRJ0-EB Data sheet | angleščina |
Data sheet | angleščina | |
Panel PC PPC015 CE - 67P-RRJ0-EB
Datenblatt für Panel PC PPC015 CE - 67P-RRJ0-EB Data sheet | nemščina |
Data sheet | nemščina | |
EU-Declaration of Conformity - HMI
state: 19.12.2018 Certification | nemščina, angleščina |
Certification | nemščina, angleščina | |
Movicon for HMI Panel PC
Firmware | |
Firmware | ||
UK-Declaration of Conformity - HMI
state: 04.02.2022 Certification | angleščina |
Certification | angleščina | |
EU-Declaration of Conformity - HMI
state: 04.02.2022 Certification | angleščina, nemščina |
Certification | angleščina, nemščina | |
UK-Declaration of Conformity - HMI
state: 23.03.2022 Certification | angleščina |
Certification | angleščina | |
EU-Declaration of Conformity - HMI
state: 23.03.2022 Certification | angleščina, nemščina |
Certification | angleščina, nemščina | |
Yaskawa HMI | ChinaRoHS Certification | angleščina | Certification | angleščina |
