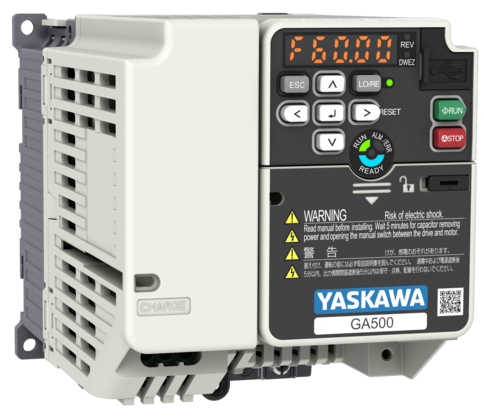

GA500 Series
GA50C2010AJA
AC Microdrives for Industrial Applications
Pregled
The GA500 drive comes with valuable functions and smart features to provide benefits through the whole life cycle of a machine or installation. From drive selection, through design, installation, start-up or troubleshooting, the GA500 makes life easy.
- One drive controlling any induction, permanent magnet or synchronous reluctance motor
- Easy motor setup without the need for auto-tuning simplifies tuning with connected machinery
- Convenient commissioning by programming without main power from PC or Smart Phone
Tehnične informacije
- Vhodna moč napajanja
- 200 V
- Merjeni izhodni tok (HD)
- 8 A
- Merjeni izhodni tok (ND)
- 9.6 A
- 50% ED Rated Output Current
- x Ne
- Overload Tolerance (ND)
- 110 % for 60 s
- Overload Tolerance (HD)
- 150 % for 60 s
- Max delovna moč (HD)
- 1.5 kW
- Max delovna moč (ND)
- 2.2 kW
- Vhodna moč faz
- 3-phase
- EMC Filter
- x Ne
- Tip motorja
- Induction motor, Permanent magnet motor, Synchronous reluctance motor
- Dajalnik pulzev (encoder)
- x Ne
- Skladnost s standardi
- cUL, CE, RoHS, UL, UKCA
- Višina
- 128 mm
- Širina
- 108 mm
- Globina
- 72.5 mm
- Teža
- 1.6 kg
- Cooling method
- Air cooling
- Priloga
- Finless (IP20)
- Okoljevarstvene specifikacije
- Standard
- Analog Input
- 2
- Analog Output
- 1
- Digital Input
- 7
- Digital Output
- 3
- Safety Level
- SIL3
- Performance Level
- PL e
- Torque Control
- Standard
- Zavorni tranzistor
- Built-in
- Motor Thermal Protection
- Standard
- Max Output Frequency
- 590 Hz
